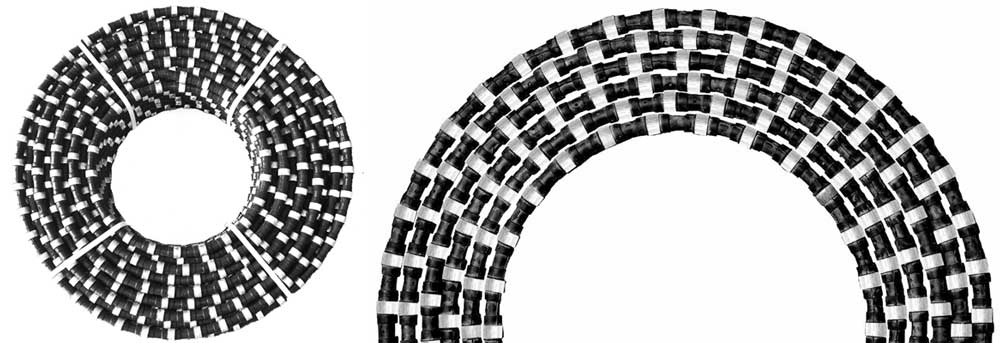

Diamond Wire Saw Marble Quarry and Squaring
Greatop Diamond Tools Co., LTD is Diamond Wire Saw manufacturer. We use the Top-Level raw materials for our products. Such like, steel wire from Germany, diamond powder from Japan, A class nature rubber from Indonesia, cobalt power from Congo…
Specifications of Diamond Wire Saw
Model Name | DiameterMM | NO.of Beadsper Meter | Coating |
M11RM11RS | Φ11 | 40 | Rubber or Rubber+Spring |
| Φ11 | 40 | Rubber or Rubber+Spring | |
| Φ11 | 40 | Rubber or Rubber+Spring |
Model Name | DiameterMM | NO.of Beadsper Meter | Coating |
M115RM115RS | Φ11.5 | 40 | Rubber or Rubber+Spring |
| Φ11.5 | 40 | Rubber or Rubber+Spring | |
| Φ11.5 | 40 | Rubber or Rubber+Spring |
Performance of Diamond Wire Saw
Model Name | Cutting Object | Line SpeedMeter/Second | Cutting SpeedSquare M/Hour | Life TimeSquare M/M |
M11RM11RS | Normal Marble | 33-38 | 8-12 | 30-35 |
| Hard Marble | 30-35 | 6-10 | 25-30 | |
| Super Hard Marble | 28-33 | 4-8 | 20-25 |
Model Name | Cutting Object | Line SpeedMeter/Second | Cutting SpeedSquare M/Hour | Life TimeSquare M/M |
M115RM115RS | Normal Marble | 33-38 | 8-12 | 35-45 |
| Hard Marble | 30-35 | 6-10 | 30-40 | |
| Super Hard Marble | 28-33 | 4-8 | 25-35 |
